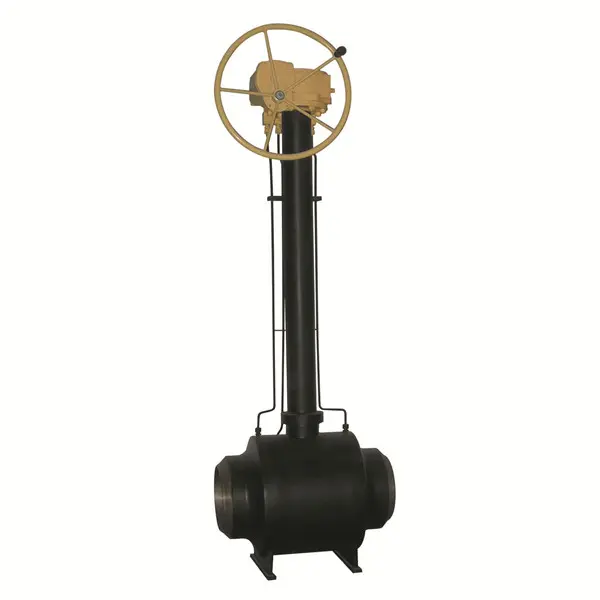

Fully Welded Ball Valve
Short Description:
Structures
- Double block and bleed (DBB)
- 1 pc fully welded body
- Anti Static spring
- Anti Blowout Stem
- Fire safe
- Self Cavity relief
Parameters
Design Standard: API6D
Pressure-temperature Ratings: ASME B16.34
Size Range: 2” to 36”
Pressure Range: Class 150 to 900
End Connections: Flanged RF, RTJ
Flanged End Dimensions: ASME B16.5 (≤24”), ASME B16.47 Series A or B (>24”)
Face to Face Dimensions: ASME B16.10
Inspection and Testing: API 598, API 6D
Body Materials: WCB, WCC, CF3, CF8, CF8M CF3M, CF8C, A995 4A/5A/6A, C95800.
Support customization | Provide selection suggestions | Same-day quotation
