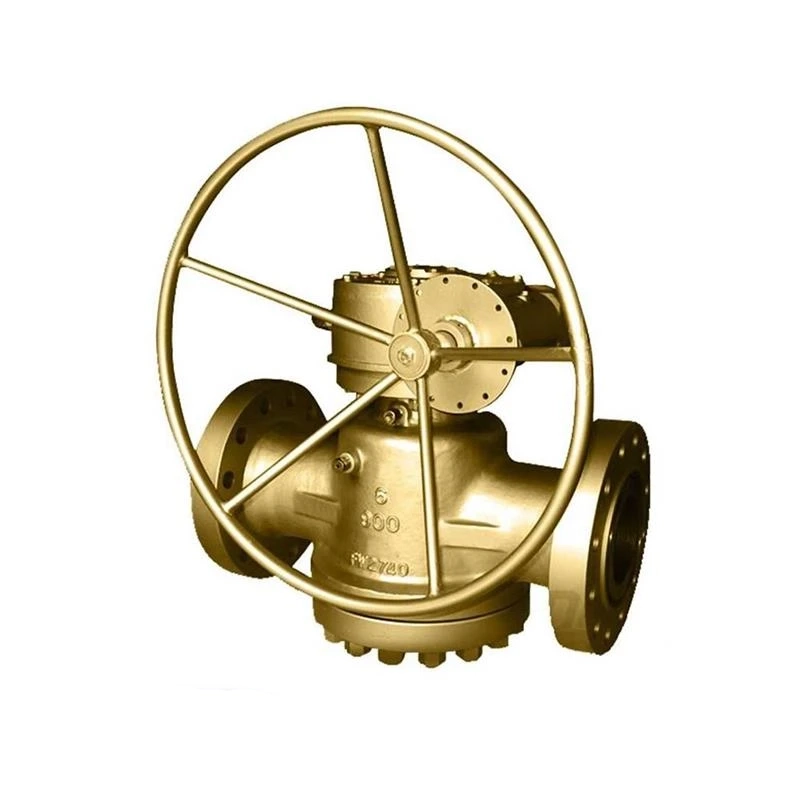

Bronze Plug Valve Threaded & Flanged for Marine Seawater Pipeline System
Bronze Plug Valve is quarter‑turn plug‑type valve for quick shut‑off and flow diversion control for marine and water pipeline systems.
Body material: high‑quality bronze alloy
End connection: NPT / BSPP threaded, flanged optional
Available type: 2‑way straight, 3‑way multi‑port
Pressure rating: PN10‑PN16 / Class125‑150
Outstanding anti‑corrosion performance, suitable for seawater and salt‑water working condition
90‑degree quarter‑turn quick open & close operation
Realize pipeline cut‑off as well as medium flow direction switching
Compact body structure, small installation footprint
Reliable sealing performance, stable under marine vibration condition
Robust bronze construction, long service‑life in salt‑spray environment
Simple manual operation, convenient maintenance
OEM support for size, port type and thread standard customization
Bronze Plug Valve
Application
Face to Face Dimensions:ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions: ANSI B16.25
Design and Manufacture: API 6D
Pressure Test: API598
Materials: C95800, C95500, C95200, C95300, C95600, C61900, C63200, ect.
Bronze plug valves are used in industrial piping systems to control the flow of fluids.
It has a copper alloy valve body with good corrosion resistance, thermal
conductivity, and flange connection.
